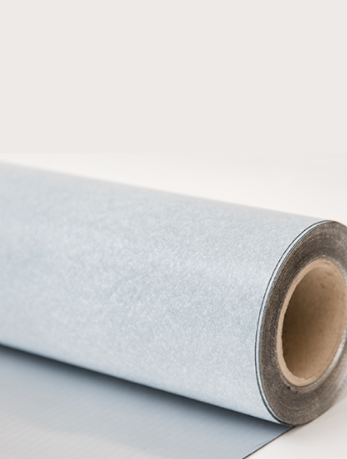

S-Vap 5000 E SA is a multi-layered self-adhesive vapour barrier manufactured from polymer modified bitumen with a glass-fibre mat reinforcement and an aluminium foil top layer.

Uses

S-Vap 5000 E SA may only be used by experienced professionals. As a vapour barrier over most common roof deck types:

• Concrete / cementitious
• Metal Plywood panels timber boards oriented strand board (OSB)

As a carrier layer for use with approved liquid applied membranes. Temporary waterproofing layer for up to 4 weeks.

Advantages

• Ease and speed of installation from self-adhesive properties
• Can be used in a fully adhered roof build-up. No additional fasteners required for securing the thermal insulation boards to the structural deck
• Temporary waterproof top layer for up to 4 weeks without the requirement for additional weight/ballast and/or mechanical fastenings
• High self adhesion strength allows high wind design loads from 24 kN/m2 to 28 kN/m2
• Provides an air tight layer
• High tear resistance to foot traffic during roof build up activities
• High water vapour resistance makes it suitable in combination with all types of membranes
• Accommodates a wide range of roof system deck types and substrate combinations
• Can be bonded onto flashings inclined or vertical surfaces
